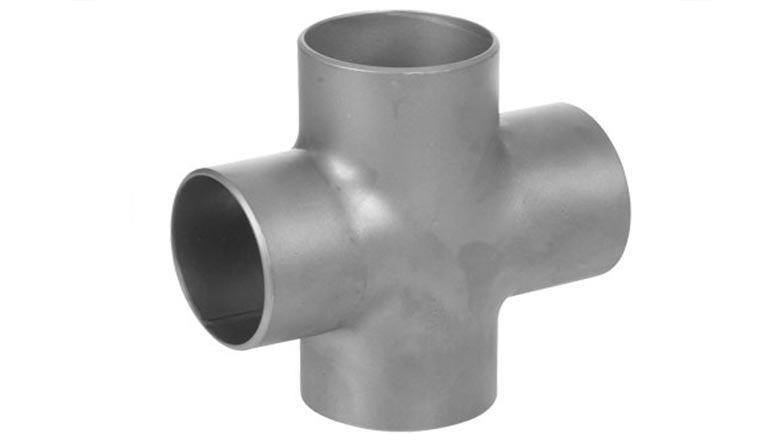

Pipe Cross
PIPE CROSS – STRAIGHT/EQUAL CROSS, REDUCING CROSS MANUFACTURER/EXPORTER IN INDIA | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 CARBON, ALLOY, STAINLESS STEEL PIPE CROSS
SK Tube Corporation is a well-known producer of 4-way pipe fittings, which are cross fittings made of stainless steel, carbon steel, or alloy steel. Cross ties are in the middle of four connecting points, which means that when the temperature changes, they typically exert significant stress on the pipe. Tees behave like three-legged stools, and crosses behave like four-legged stools, making tees steadier than crosses.
We provide two varieties of pipe crosses: straight crosses and decreasing crosses, in an extensive array of sizes and shapes. We are a top provider of alloy and stainless steel cross ties to both local and foreign clients in a range of sectors, including paper, petrochemical, oil and gas, power generation, and pharmaceuticals.
Manufacturing, natural gas industry and chemical plants. Cross is used in many applications, as a junction for intersecting pipes.
Butt Welded Pipe Cross Production Range
| Outside Diameter: | Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″) |
| Types: | Seamless, Welded, Equal Cross, Reducing Cross |
| Wall Thickness: | 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards– Pipe Cross
| ASME: | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
| ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Pipe Cross Material Grades
| Stainless Steel Pipe Cross | ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Carbon Steel Pipe Cross | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Pipe Cross | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Pipe Cross | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Duplex Pipe Cross | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
| Nickel Alloy Pipe Cross | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) |
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
Quality Assurance
At SK Tube Corporation , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates:
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
