Weld Neck Flanges

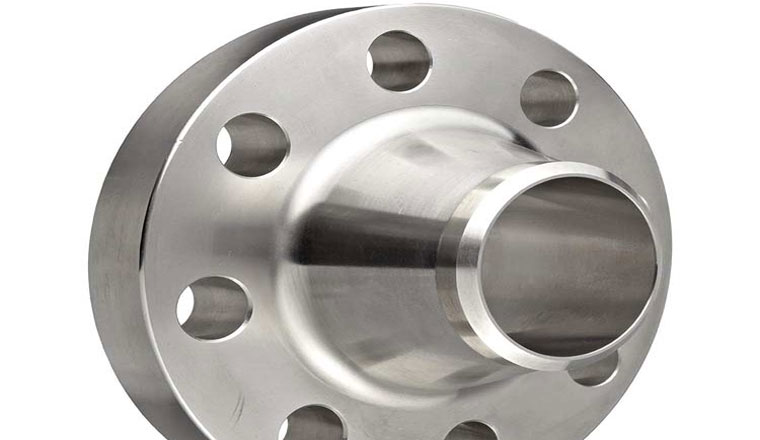

ASME/ANSI B16.5 WELD NECK (WN) PIPE FLANGES MANUFACTURER IN INDIA MANUFACTURER/EXPORTER OF HIGH QUALITY WELD NECK FORGED FLANGES CARBON, ALLOY, STAINLESS STEEL WELD NECK FLANGES

India's SK Tube Corporation is a specialized producer of weld neck flanges that meet ASME/ANSI/DIN standards. For standard size carbon steel and stainless steel weld neck flanges, we provide fast delivery options.

In order to transfer stress from the weld neck to the pipe itself, weld neck pipe flanges are attached to the pipe by welding the pipe to the pipe flange's neck. Additionally, this lessens the concentration of high stress at the weld neck pipe flange base hub base. Weld neck pipe flanges are typically utilized in hot or cold environments under high pressure. A weld neck pipe flange's inner diameter is machined to coincide with the pipe's inner diameter.

We provide organizations in a range of industries, including shipbuilding, power generation, petrochemical facilities, oil refineries, waste water treatment plants, paper mills, pharmaceutical plants, and turnkey projects, with weld neck pipe flanges made at our factory.

Our products are widely exported to countries and regions such as the United States, Europe, Russia, Turkey, Malaysia, the UAE, Saudi Arabia, Iran, Brazil, Chile, Mexico, South Africa, Jordan, Tunisia, Vietnam, Indonesia, Thailand, Singapore, Colombia, and Sri Lanka.


Welding Neck Flange, WN Forged Flanges, Weld Neck Flanges Production Range

Size 1/2″ (15 NB) to 48″ (1200NB)
Standards ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Weld Neck Flanges ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Weld Neck Flanges ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Weld Neck Flanges ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Weld Neck Flanges Duplex, Super Duplex, Nickel Alloys
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services CNC Machining, Customised Flanges

Value Added Services: CNC Machining, Customised Flanges

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At SK Tube Corporation , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates:

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Technical Information – Specifications, Dimensions Weld Neck Flanges

  • ANSI/ASME B16.5 Welding Neck Flange 150lb
  • ANSI/ASME B16.5 Welding Neck Flange 300lb
  • ANSI/ASME B16.5 Welding Neck Flange 400lb
  • ANSI/ASME B16.5 Welding Neck Flange 600lb
  • ANSI/ASME B16.5 Welding Neck Flange 900lb
  • ANSI/ASME B16.5 Welding Neck Flange 1500lb
  • ANSI/ASME B16.5 Welding Neck Flange 2500lb
  • ANSI/ASME B16.47 Series B Weld Neck Flange 75lb
  • ANSI/ASME B16.47 Series B Weld Neck Flange 150lb
  • ANSI/ASME B16.47 Series B Weld Neck Flange 300lb
  • ANSI/ASME B16.47 Series B Weld Neck Flange 600lb
  • ANSI/ASME B16.47 Series B Weld Neck Flange 400lb
  • ANSI/ASME B16.47 Series B Weld Neck Flange 900lb
  • ANSI/ASME B16.47 Series A (MSS SP44) Weld Neck Flange 150lb
  • ANSI/ASME B16.47 Series A (MSS SP44) Weld Neck Flange 300lb
  • ANSI/ASME B16.47 Series A (MSS SP44) Weld Neck Flange 400lb
  • ANSI/ASME B16.47 Series A (MSS SP44) Weld Neck Flange 600lb
  • ANSI/ASME B16.47 Series A (MSS SP44) Weld Neck Flange 900lb

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At SK Tube Corporation , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates:

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Technical Information – Specifications, Dimensions Threaded/Screwed Flanges

  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 150lb
  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 300lb
  • ANSI-ASME B16.5 Threaded Flange, Screwed Flange 400lb
  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 600lb
  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 900lb
  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 1500lb
  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 2500lb
