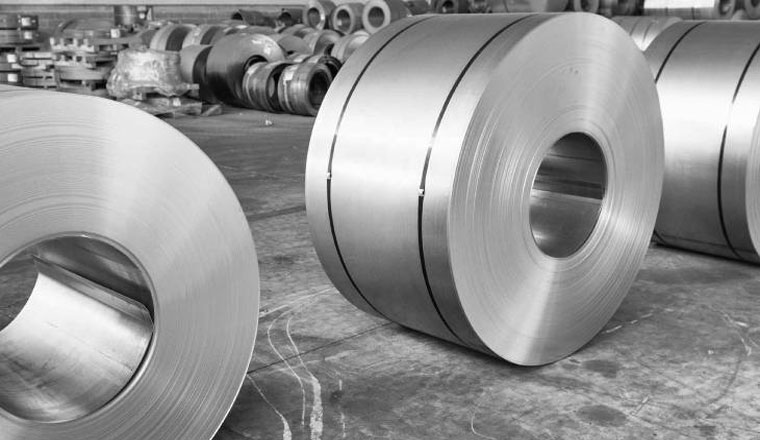

Sheets-Plates-Coil
Our extensive selection of premium-quality raw materials-fabricated industrial steel sheets, industrial steel plates, and industrial stainless steel sheets is available. Produced in compliance with global quality and safety regulations, we provide these products in various sizes at incredibly low costs. The engineering and construction sectors are where these items are primarily used.
The following industries are user-focused: technology, finance, and personal; chemicals, fats, and fertilizers; sugar mills & distilleries; cement industries; ship builders; paper industries; pumps; petrochemicals; oil & natural gas organizations; and so on.
Sheets & Plates Specification
| Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Sheets & Plates Size Range | Cold rolled ASME SA240 Grade Stainless Steel Sheet 0.5-6.4
mm Hot rolled ASME SA240 Grade Stainless Steel Sheet 3.0–10.0 mm |
| Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 SS Strips EN 10088 SA -240-Strips |
| Finish of Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Finishes Of Sheets & Plates
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Stainless & Duplex Steel
Range :
0.1 mm to 100 mm thick upto 2500 mm width & upto 8000 mm length available with
NACE MR 01-75s.
Stainless Steel :
ASTM / ASME SA 240 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430
Duplex Steel :
ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Stainless Steel :
ASTM / ASME SA 240 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430
Duplex Steel :
ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Carbon & Alloy Steel
Range :
3 mm to 100 mm thick in upto 2500 mm width upto 12500 mm length available with NACE
MR 01-75s
Carbon Steel :
ASTM / ASME A 516 / 517 GR. 60 / 70 , IS 2062 , IS 2002
Alloy Steel :
ASTM / ASME A 387 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
Carbon Steel :
ASTM / ASME A 516 / 517 GR. 60 / 70 , IS 2062 , IS 2002
Alloy Steel :
ASTM / ASME A 387 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
Nickel & Copper Alloy
Sheet and Plates Range :
5 mm to 100 mm thick in upto 2500 mm width & upto 6000 length available with NACE MR 01-75s.
Nickel Alloy :
ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 127UNS 4400 (MONEL 400 )
ASTM / ASME SB 424 UNS 8825 (INCONEL 825)
ASTM / ASME SB 168UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 443 UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 )
5 mm to 100 mm thick in upto 2500 mm width & upto 6000 length available with NACE MR 01-75s.
Nickel Alloy :
ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 127UNS 4400 (MONEL 400 )
ASTM / ASME SB 424 UNS 8825 (INCONEL 825)
ASTM / ASME SB 168UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 443 UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 )
Hastelloy
Sheet and Plates Grades : Hastelloy C-22, Hastelloy C-276,
Hastelloy C-2000
Form:
Hastelloy Sheet
Hastelloy Coil
Hastelloy Strips
Hastelloy Plates
Hastelloy Circle
Hastelloy Ring
Form:
Hastelloy Sheet
Hastelloy Coil
Hastelloy Strips
Hastelloy Plates
Hastelloy Circle
Hastelloy Ring
Inconel Sheet and Plates
Grades :
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Standard : ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Standard : ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443
Incoloy
Sheet and Plates Grades : Incoloy 800, incoloy 825, Incoloy 925,
Incoloy a-286, Incoloy DS
Type: Seamless / Erw / Welded/ Fabricated
Standard : ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751
This range is used in :
Petrochemicals Plants
Oil Refineries
Fertilizers Plants
Sugar Mills
Chemical Plants
Pharmaceuticals
Textile Machinery
Type: Seamless / Erw / Welded/ Fabricated
Standard : ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751
This range is used in :
Petrochemicals Plants
Oil Refineries
Fertilizers Plants
Sugar Mills
Chemical Plants
Pharmaceuticals
Textile Machinery
Monel
Sheet and Plates Grades : Monel 400, Monel k500
Type: Seamless / Erw / Welded/ Fabricated
Form: Round, Square, Rectangular, Hydraulic etc.
Length: Single Random, Double Random & Cut Length
End:
Plain End, Beveled End, Threaded
The salient features are as follows :
Hot Dipped Galvanizin Epoxy & Fbe Coating Electro Polish Draw & Expansion
Type: Seamless / Erw / Welded/ Fabricated
Form: Round, Square, Rectangular, Hydraulic etc.
Length: Single Random, Double Random & Cut Length
End:
Plain End, Beveled End, Threaded
The salient features are as follows :
Hot Dipped Galvanizin Epoxy & Fbe Coating Electro Polish Draw & Expansion
Titanium
Sheet and Plates Specifications
1)hot and coll rolled, Gr1~Gr23
2)Thickness:0.3mm - 60mm
3)Length:6000mm
4)ASTM B265,ASTM 4911,F67,F136
Material :titanium and titanium alloys
Pure Titanium Grade : GR1, GR2, GR3, GR4
Titanium Alloy Grade : GR5 (6% Al, 4%V)
GR6 (5% AL, 2.5%Sn)
Gr.7 (Titanium + Pd)
Gr.9 (3% Al, 2.5%V)
Gr.10 (11.5%Mo, 6% Zr, 4.5% Sn)
Gr.11 (Titanium + Pd)
Gr.12 (0.3% Mo, 0.8% Ni)
1)hot and coll rolled, Gr1~Gr23
2)Thickness:0.3mm - 60mm
3)Length:6000mm
4)ASTM B265,ASTM 4911,F67,F136
Material :titanium and titanium alloys
Pure Titanium Grade : GR1, GR2, GR3, GR4
Titanium Alloy Grade : GR5 (6% Al, 4%V)
GR6 (5% AL, 2.5%Sn)
Gr.7 (Titanium + Pd)
Gr.9 (3% Al, 2.5%V)
Gr.10 (11.5%Mo, 6% Zr, 4.5% Sn)
Gr.11 (Titanium + Pd)
Gr.12 (0.3% Mo, 0.8% Ni)
| Specification | Product Form |
| ASTM B265(Gr2 | Sheet,Strip and Plate |
| ASTM B338 | Tube,Seamless and Welded |
| ASTM B348(Gr2) | Bars and Billets |
| ASTM B861 | Seamless Pipe |
| ASTM B863 | Wire |
| ASTM F67(Gr2) | Unalloyed Titanium for Surgical Implants |
Tantalum
Specifications : tantalum sheet, tantalum plate, tantalum foil
Grade: RO5200, Ro5400,RO5252,RO5255
Standard :ASTM B708-98
Size:T0.1-10.0mm
We are factory specializing in the manufacture and export Tantalum and Niobium prodcut for more than ten years,Including foil tube ,rod,wire,sheet,plate, ,rod,strip,target and so on We can supply the best quallity and low price. Tantalum sheets, Tantalum- tungsten alloy sheets(Ta2.5W, Ta10W)
Purity : 99.95%min or 99.99%min conformity with ASTM B 708 98
Grade: RO5200, Ro5400,RO5252,RO5255
Standard :ASTM B708-98
Size:T0.1-10.0mm
We are factory specializing in the manufacture and export Tantalum and Niobium prodcut for more than ten years,Including foil tube ,rod,wire,sheet,plate, ,rod,strip,target and so on We can supply the best quallity and low price. Tantalum sheets, Tantalum- tungsten alloy sheets(Ta2.5W, Ta10W)
Purity : 99.95%min or 99.99%min conformity with ASTM B 708 98
| Thickness (mm) | Width (mm) | Length (mm | |
| Foil | 0.03-0.09 | 30-600 | 100 |
| Sheet | 0.1-0.5 | 30- 609.6 | 30-1000 |
| Board | 0.5-10 | 50-1000 | 50-2000 |
