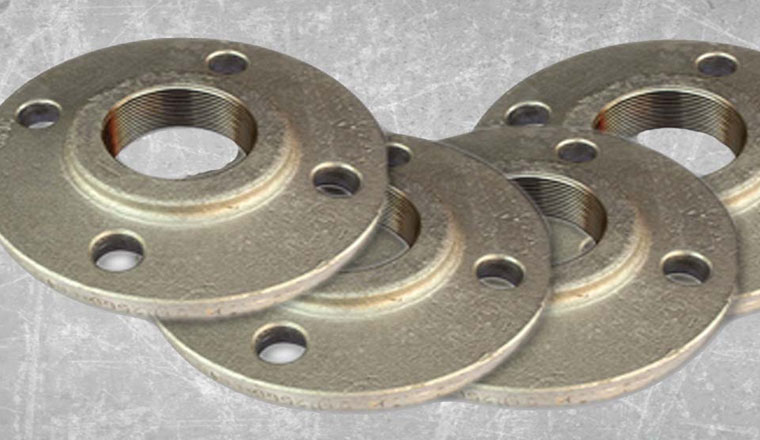

Threaded Flanges

ASME/ANSI B16.5 THREADED PIPE FLANGES MANUFACTURER IN INDIA MANUFACTURER/EXPORTER OF HIGH QUALITY THREADED FORGED FLANGES CARBON, ALLOY, STAINLESS STEEL THREADED/SCREWED FLANGES

High-quality threaded or screwed flanges meeting ASME/ANSI/DIN standards are manufactured only in India by SK Tube Corporation. For common size carbon steel and stainless steel threaded flanges, we provide fast delivery options.

Because threaded flanges don't require welding to connect to pipes or other equipment, they are frequently utilized in low pressure piping systems. Even if welding the flange around the connection after assembly is possible, this isn't thought to be a good enough way to expand its uses. Similar to slip-on flanges, threaded flanges are also called screwed flanges because they include a threaded bore that makes welding not necessary for assembly. Pipes having exterior threads are typically utilized with threaded pipe flanges.

We provide organizations in a variety of industries, such as shipbuilding, power generation, petrochemical plants, oil refineries, waste water treatment plants, paper mills, pharmaceutical facilities, and turnkey projects, with threaded pipe flanges made at our factory.

The US, Europe, Russia, Turkey, Malaysia, the UAE, Saudi Arabia, Iran, Brazil, Chile, Mexico, South Africa, Jordan, Tunisia, Vietnam, Indonesia, Thailand, Singapore, Colombia, and Sri Lanka are just a few of the nations and territories to which our items are frequently transported.


Threaded Flange, Threaded Forged Flanges, Screwed Flanges Production Range

Size 1/2″ (15 NB) to 48″ (1200NB)
Standards ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Threaded Flanges ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Threaded Flanges ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Threaded Flanges ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Threaded Flanges Duplex, Super Duplex, Nickel Alloys
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services CNC Machining, Customised Flanges

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At SK Tube Corporation , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates:

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Technical Information – Specifications, Dimensions Threaded/Screwed Flanges

  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 150lb
  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 300lb
  • ANSI-ASME B16.5 Threaded Flange, Screwed Flange 400lb
  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 600lb
  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 900lb
  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 1500lb
  • ANSI/ASME B16.5 Threaded Flange/Screwed Flange 2500lb
